Saunterer will return to the Solent on Monday 16 May 2016

Date: 14th May, 2016

After almost exactly a year on dry land, Saunterer was relaunched on 28 April 2016 – and will return to the Solent from Weymouth in the afternoon of Monday, 16th May 2016 and return to her home on the Beaulieu River.

Share:Email this to someoneShare on FacebookTweet about this on TwitterShare on Google+Share on LinkedInPin on PinterestShare on RedditShare on StumbleUpon

Saunterer is relaunched on 28 April 2016

Date: 29th April, 2016

After final preparations during the morning of Thursday, 28 April 2016…

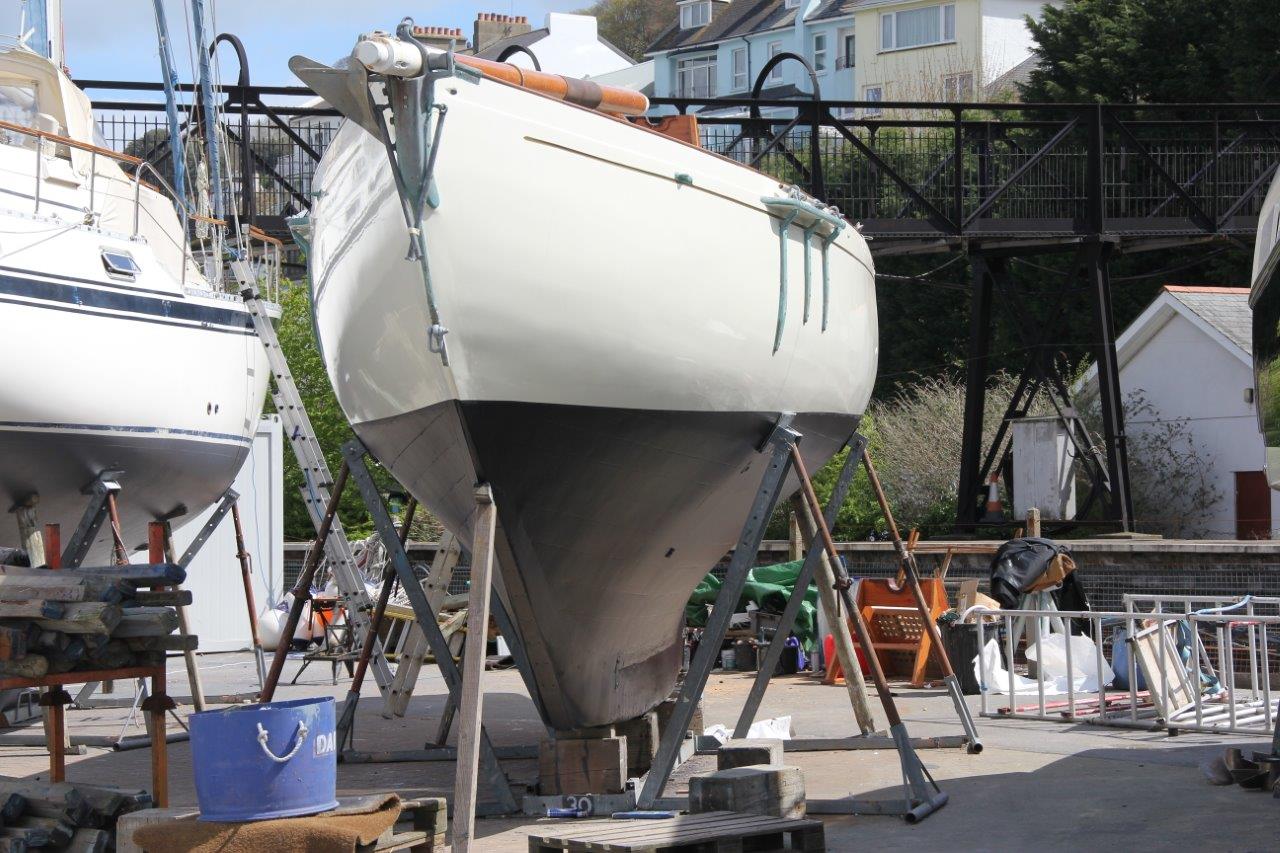

Before relaunch on 28 April 2016

Before relaunch on 28 April 2016

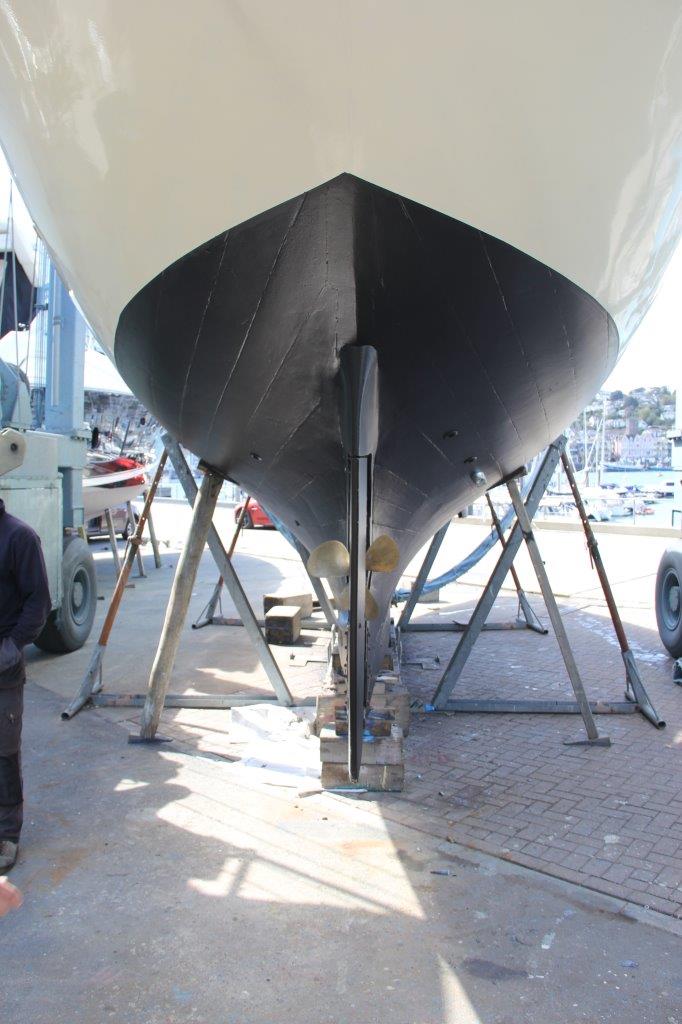

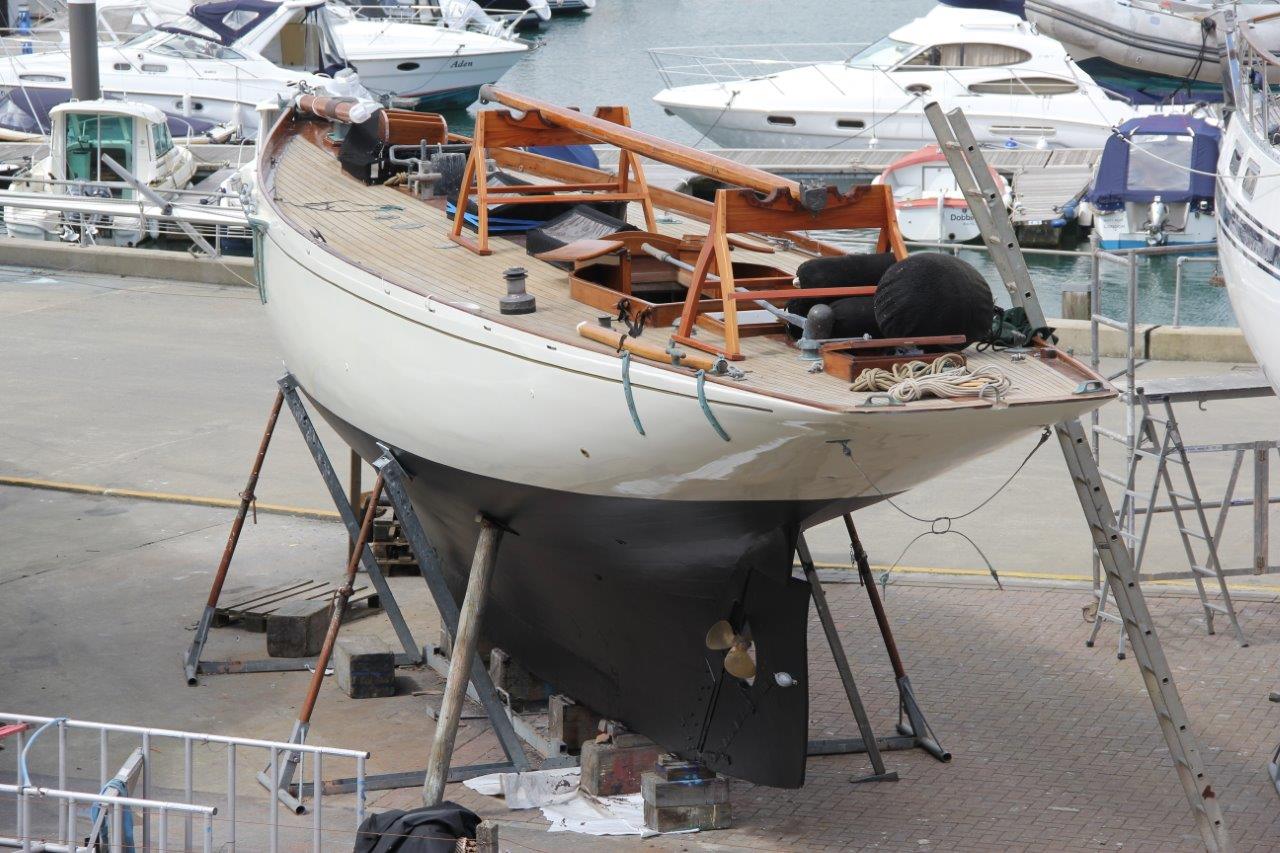

where the full extent and thoroughness of the work on her hull and keel can be seen…

IMG_8191IMG_8217

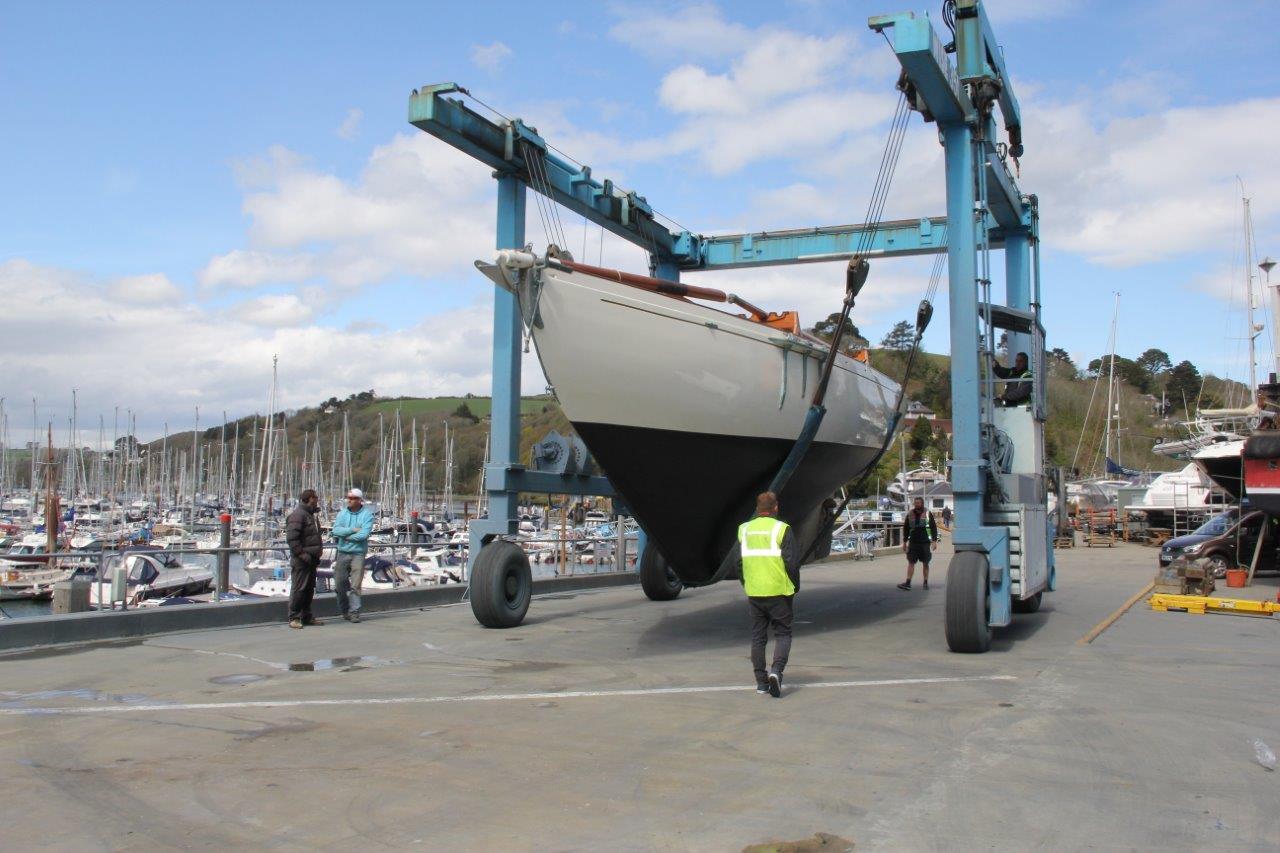

Saunterer is lifted and hoisted along the hard at Dart Haven Marina…

IMG_8227

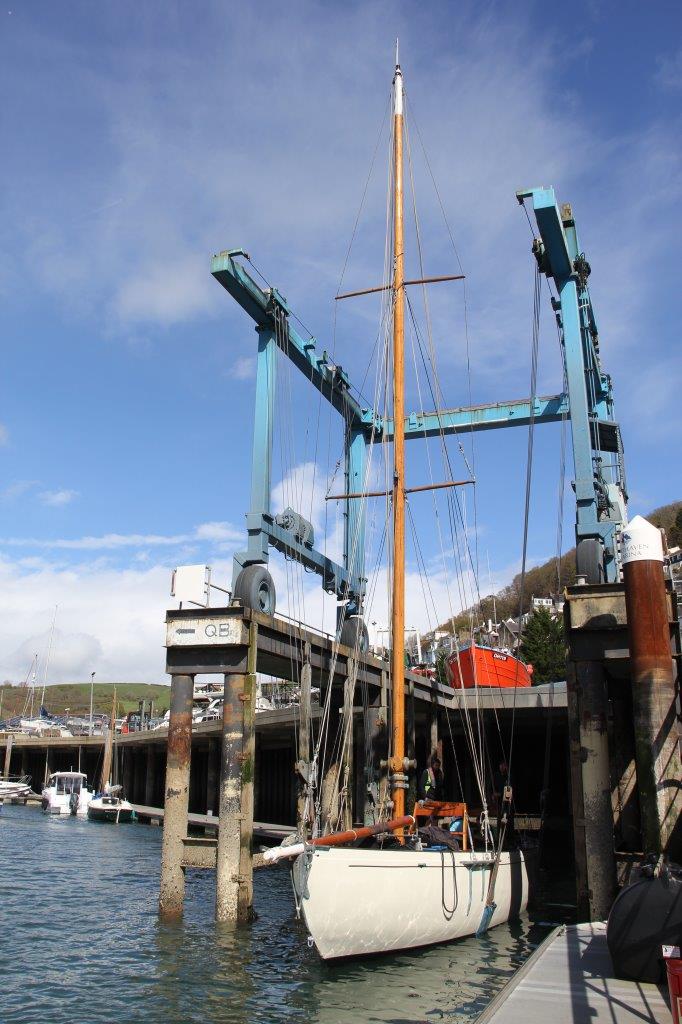

and relaunched, after her main mast has been restepped…

IMG_8288

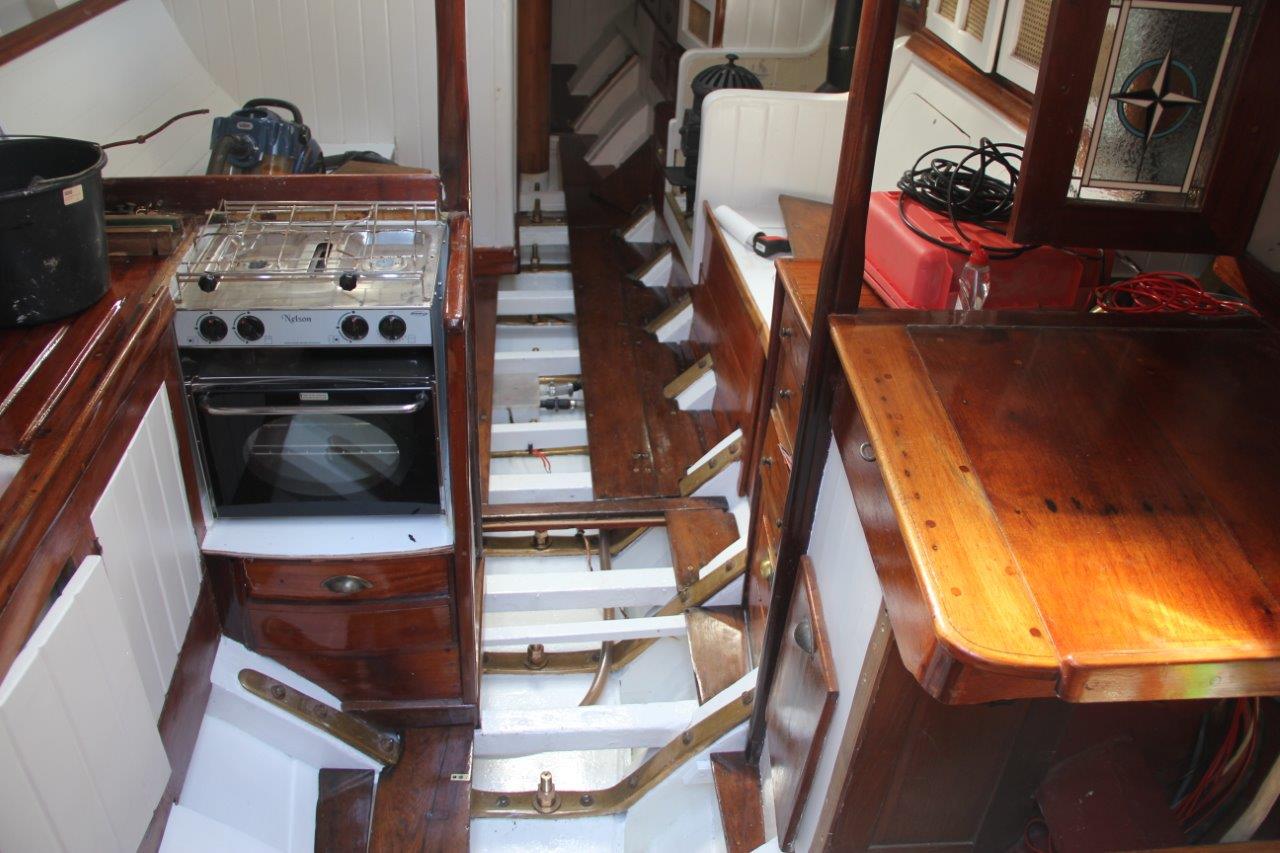

showing a dry bilge…

IMG_8295

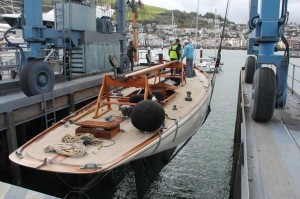

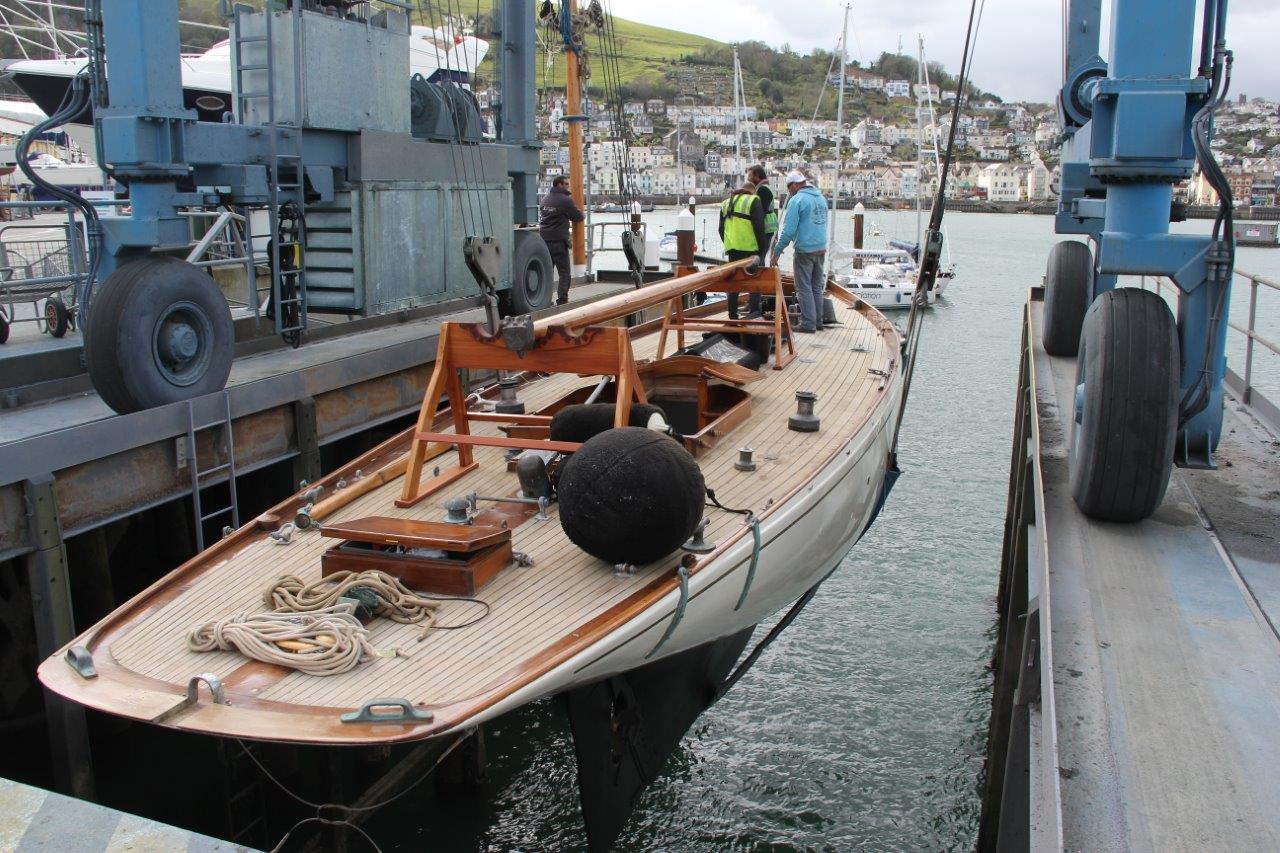

and reminding us all of the beautiful sweep of her deck…

IMG_8265 (002)

Saunterer is once again ready for sea!

The Saunterer Team

Share:Email this to someoneShare on FacebookTweet about this on TwitterShare on Google+Share on LinkedInPin on PinterestShare on RedditShare on StumbleUpon

Saunterer is ready once again to go to sea!

Date: 28th April, 2016

After 12 months out of the water, and having had her floors replaced, her keel bolts and rivets renewed, her frames inspected, and some 750kg of unnecessary ballast removed from her hull (from an overall weight of 16 tonnes), Saunterer is at last ready to be relaunched…

Saunterer on 28 April 2016 - in front of Britannia Royal Naval College Dartmouth

Saunterer on 28 April 2016 – in front of Britannia Royal Naval College Dartmouth

The picture above compares to her portrait in April 2015 in the same position before all the work was carried out – at the beginning of this uncertain and vital restoration journey.

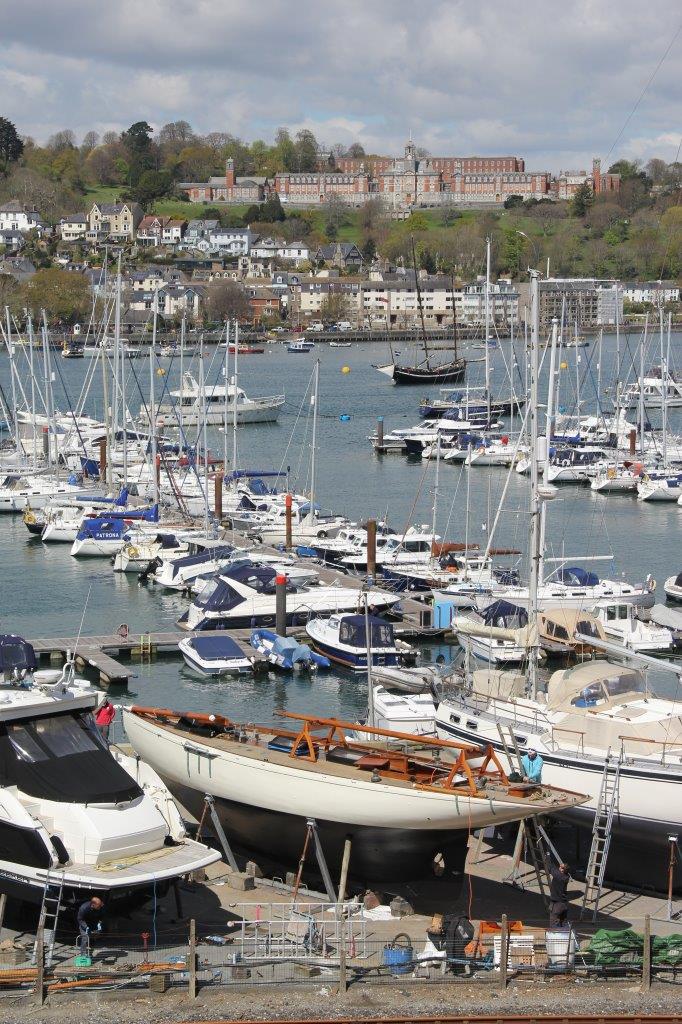

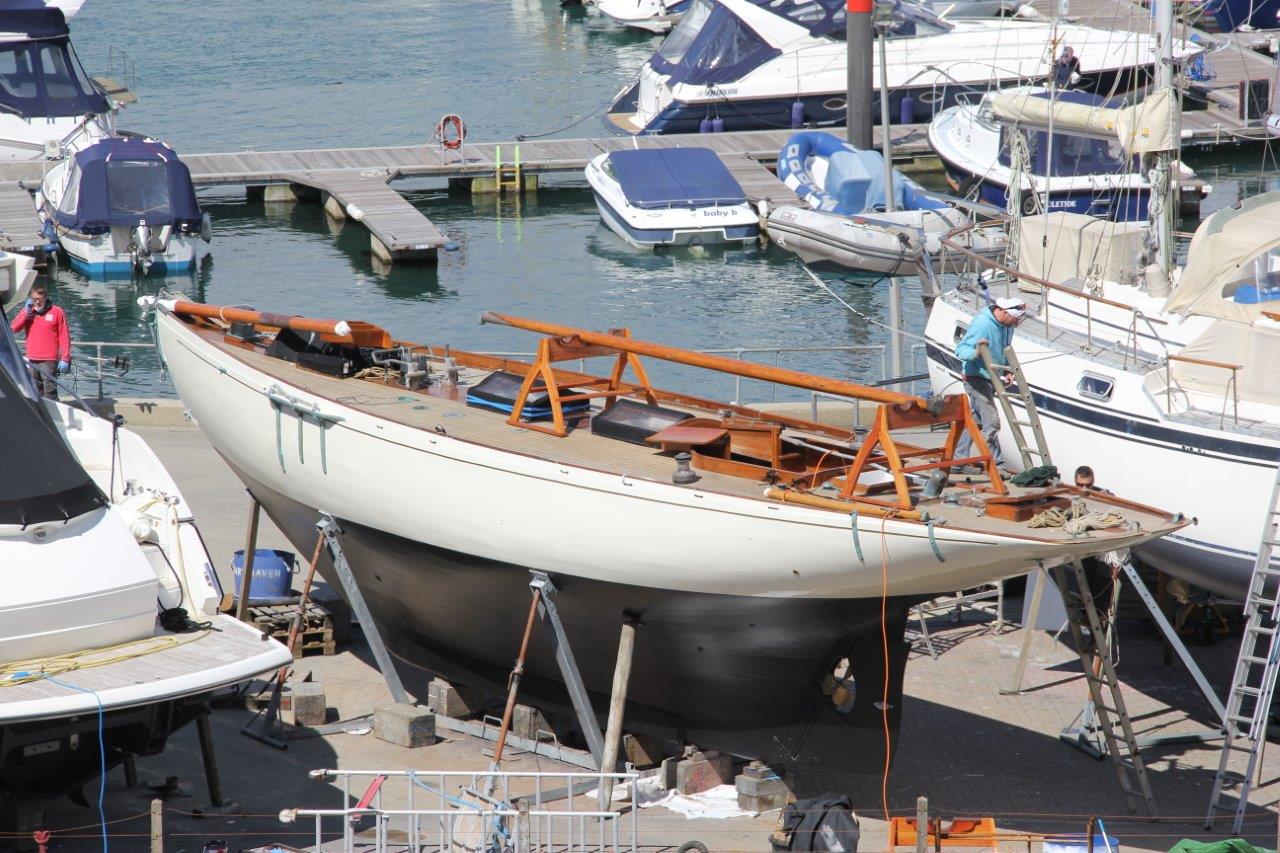

Saunterer readies for relaunching to test her new keel fastenings, to receive her masts and redraw her waterline

Saunterer readies for relaunching to test her new keel fastenings, to receive her masts and redraw her waterline

The final preparations are made before her relaunch on 28 April 2016.  Thanks to Guy Savage and all the team for the hard work over months to bring her to this point!

The Saunterer Team



Share:Email this to someoneShare on FacebookTweet about this on TwitterShare on Google+Share on LinkedInPin on PinterestShare on RedditShare on StumbleUpon

Saunterer gives up her secrets – Part 7 – Inspection of the bottom of the elm keel

Date: 15th November, 2015

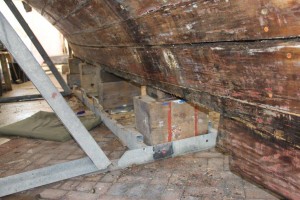

The final stage of analysing the extent of the restoration work yet to be done is to examine the elm keel – which we believe has not seen daylight since 1900.  In the shelter of the tent now built over the hull, with the ballast keel removed, the wooden keel is drying out and open to the air for the first time in a century.

IMG_7426

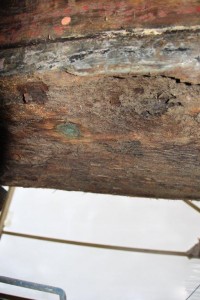

Reflecting the quality of the materials available to Charles Sibbick and the Albert Yard in the winter of 1899 and spring of 1900, this piece of wood is in the most extraordinarily good condition – while the surface is marked and rough in places, we have found almost no damage and this huge single piece of elm in an overall excellent state.

IMG_7420

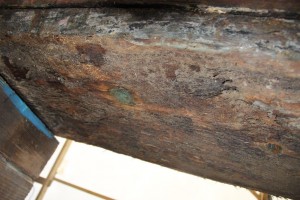

This is an important conclusion and a major discovery – and reveals the final extent of the work required to complete this phase of Saunterer’s most far reaching restoration.  Breathing a sigh of relief we can also now begin more accurately to assess the programme of rebuilding.  The picture below also shows the bolts fastening the teak keelson to the elm keel – we think these are good and in their original condition – so these we are not disturbing these as they are fast (see Saunterer gives up her secrets – Part 2  for the description of the conclusions about her construction in this area).

IMG_7419

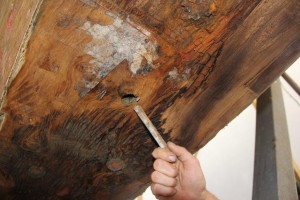

The plan from here will be to fair the elm keel, seal it with epoxy, and make it smooth for receiving the ballast keel back again in due course.  The picture below shows the early marks of a plane as this process begins – it is at a very awkward angle requiring great agility from the team!

IMG_7413

The Project Team – October 2015.

Share:Email this to someoneShare on FacebookTweet about this on TwitterShare on Google+Share on LinkedInPin on PinterestShare on RedditShare on StumbleUpon

Saunterer gives up her secrets – Part 6 – Analysis of the keelbolts after removal

Date: 14th October, 2015

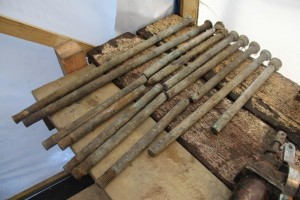

The picture below shows 9 keel bolts on the workbench after their removal from the ballast keel – out of the 10 bolts that fastened the lead ballast keel onto the elm keel running along the deepest part of the hull.  Two are intact, and at least three broke on removal – which means that some (perhaps a third) had given way in situ which might have resulted in some flex in the ballast keel when healed over – putting greater strain on the remaining bolts.

IMG_7429

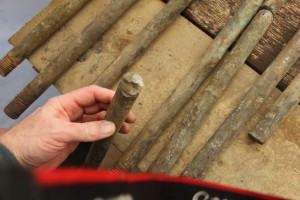

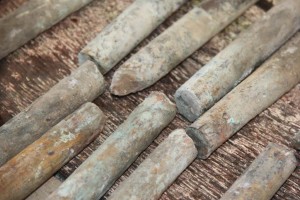

The picture below shows the condition of a broken section of a keel bolt, where the process of oxidisation has weakened the metal to the point where is loses its strength and breaks.

IMG_7430IMG_7432

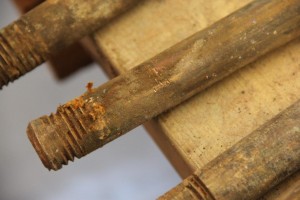

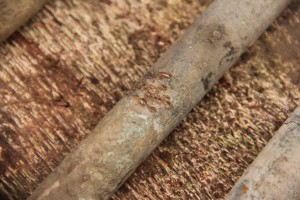

The two pictures below illustrate how soft the oxidised middle section of the bronze bolt is – as it easily marked by light blows from a hammer, while the bolt ends are noticeably harder showing smaller marks from the same impact.

IMG_7438IMG_7437

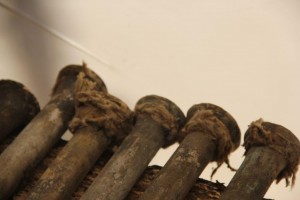

The process of bronze oxidisation takes many decades – and while it is thought from records that some of the bolts were drawn and tested in the 1970s (when Saunterer was last listed as Lloyds A1) we think that some of the keel bolts may never have been removed at all since launch in 1900 due to various reasons, and this view may be supported by the fixing round the bolt heads shown the picture below which was we believe typical of the period when Saunterer was launched.

IMG_7443IMG_7439

The “bottom line” is that this part of her restoration was, as we thought, a necessary and vital exercise, and may as it happens have been done at exactly the right time – later could have been too late.

The Project Team – October 2015

Share:Email this to someoneShare on FacebookTweet about this on TwitterShare on Google+Share on LinkedInPin on PinterestShare on RedditShare on StumbleUpon

Turning a corner – Saunterer’s ballast keel is finally removed

Date: 18th September, 2015

“The process involved in removing Saunterer’s ballast keel has required much thought.  The overall weight of Saunterer with all her equipment is some 16 tonnes, and we now know that the ballast keel weighs 8 tonnes.  Consideration has to be given to how to achieve this – not only finding facilities and skills to carefully lift her clear of the ballast keel, but also to think through the effect of removing the ballast keel on the stability of the vessel on the hard, and also on her structure – so that she does not bend when it is not in place.

Having taken all this into account, the keel bolts are loosened – the keelbolt nuts at the upper end, and melting the tar which was usually placed around the lower end, it was a matter of patiently and gently easing them out.  We did not wish to disturb Saunterer’s timbers with the major impact of driving the bolts out.

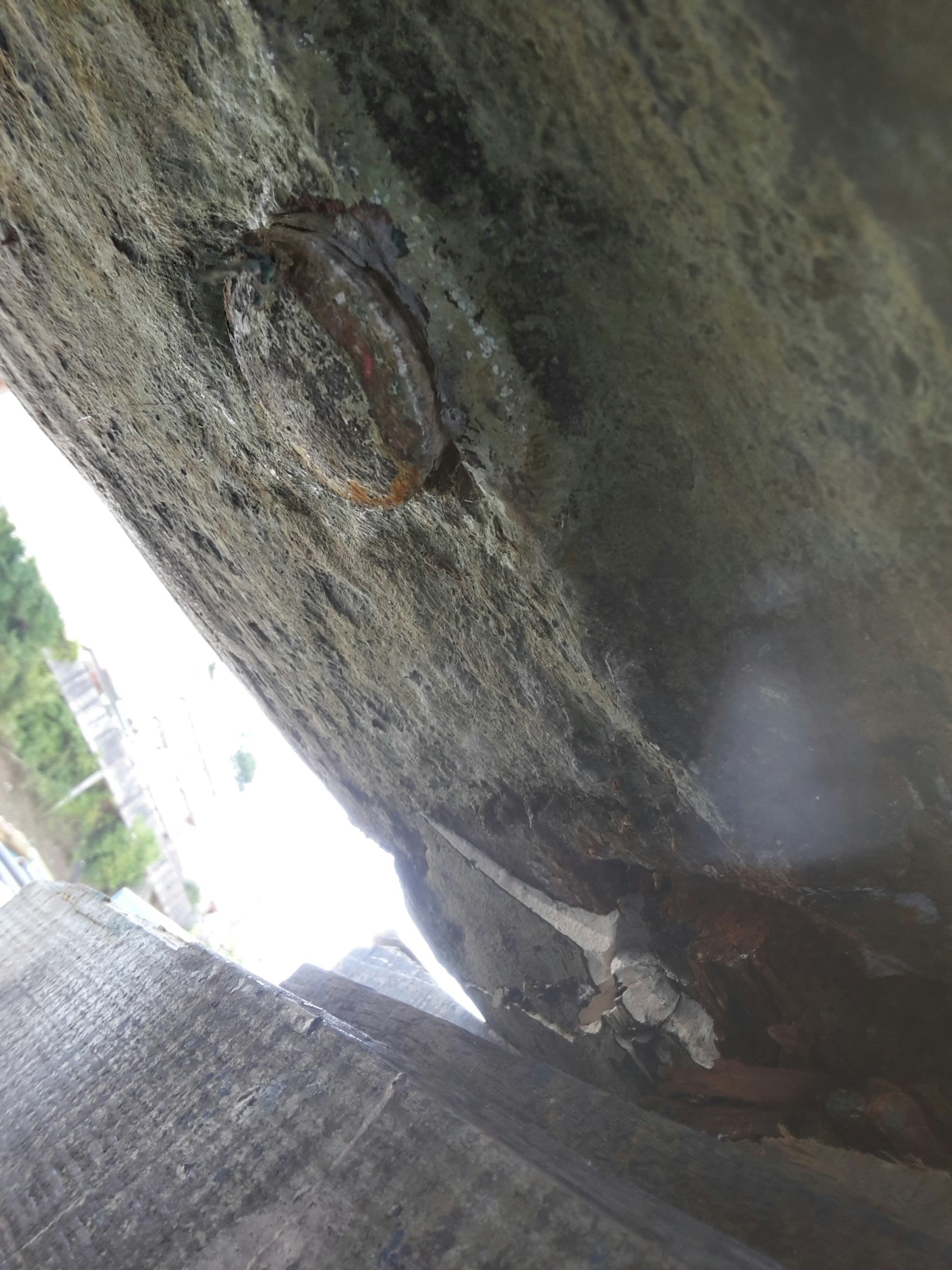

This picture (at an angle to show the light) shows the lower end (the head) of a keel bolt moving clear of the ballast keel – we think for the first time in 115 years!

Keel 1

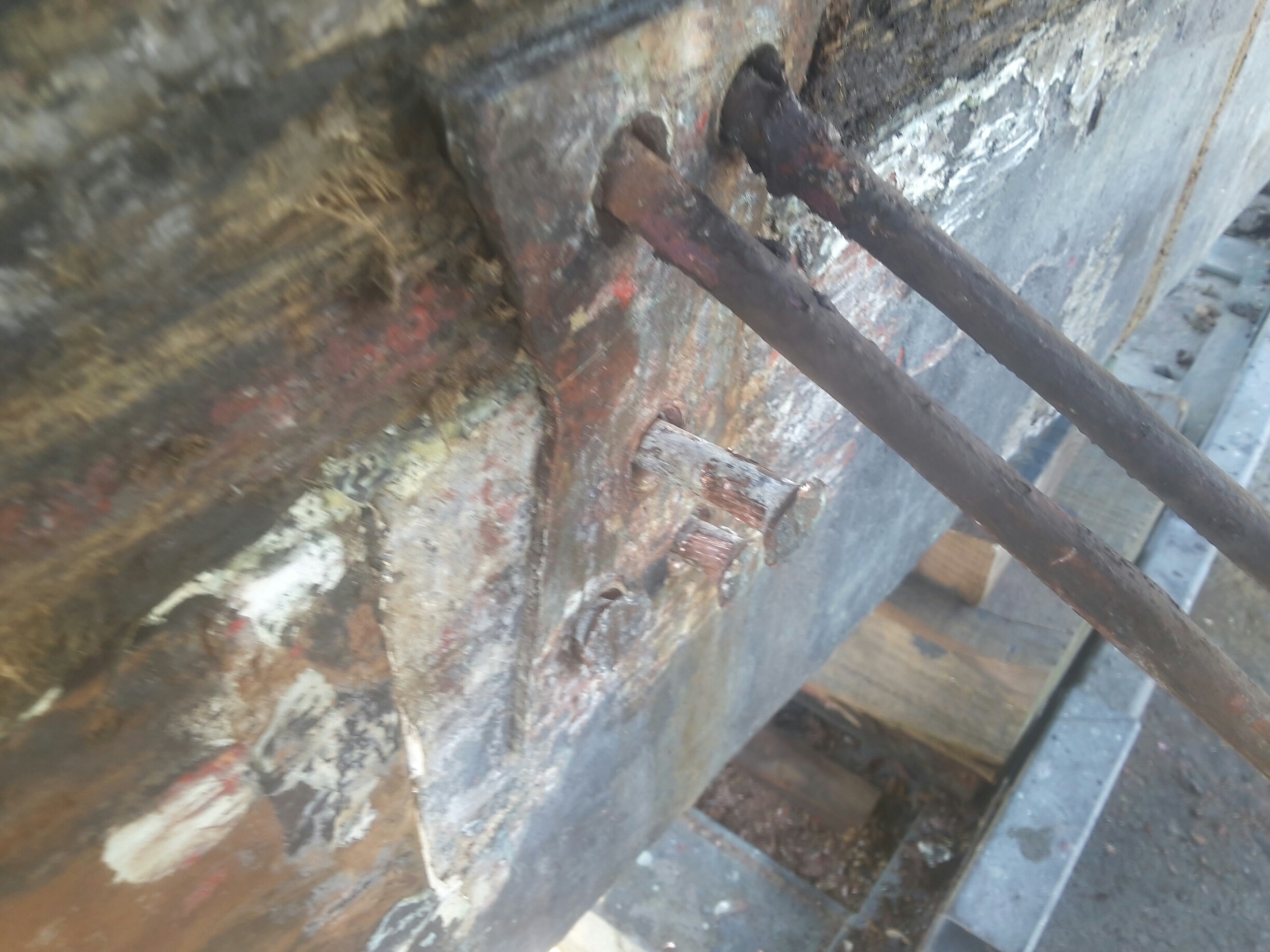

The same treatment was given to the bolts which traverse the hull through the butterly plates at the fore and aft ends of the ballast keel.

Keel 2

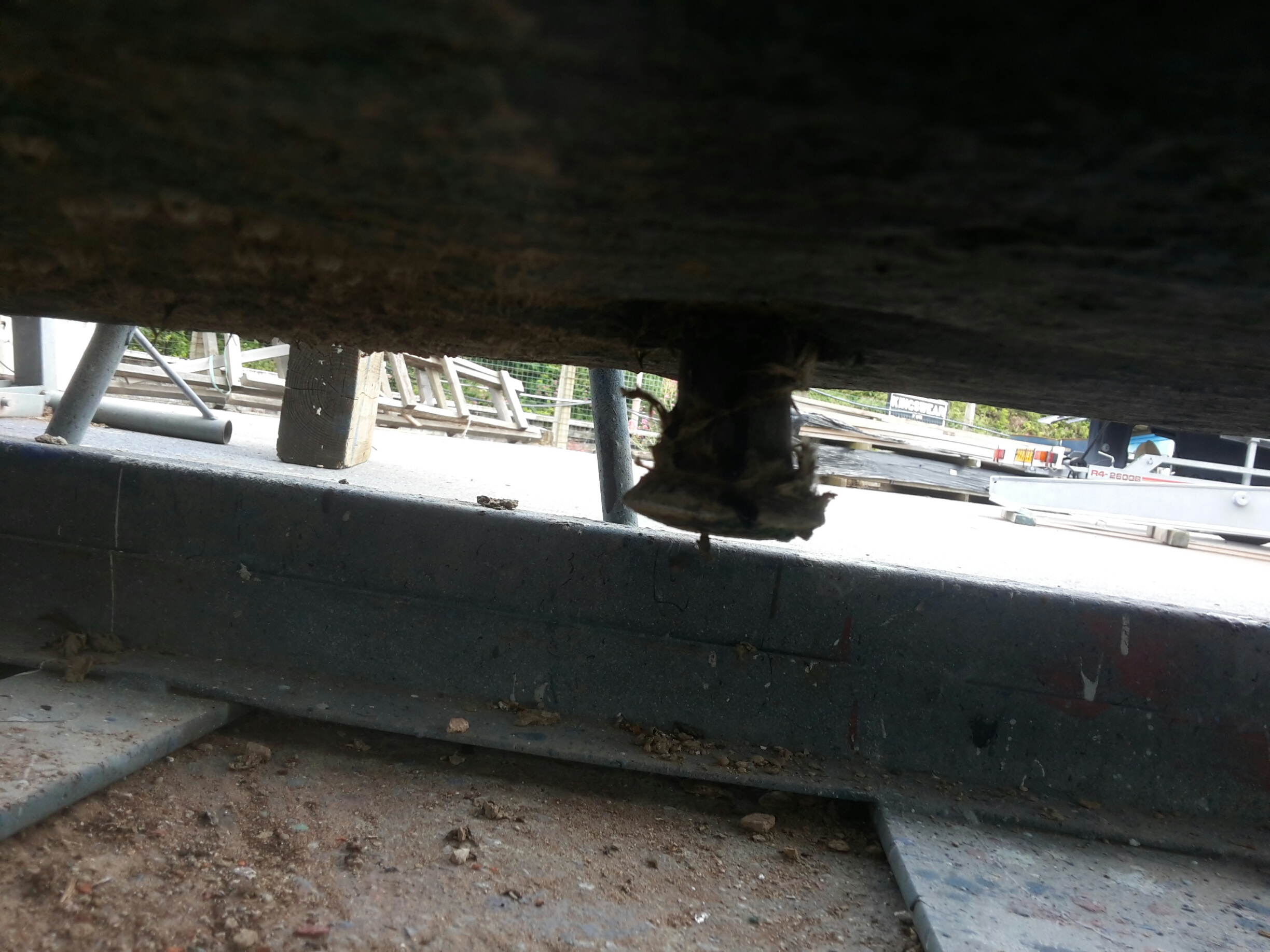

With Saunterer lifted high enough on her cradle to create sufficient for clearance for the long bolts to be pushed clear. the keel bolts are eased out of the hull…

Keel 3

Once all the bolts are clear, the crane can return and Saunterer can be lifted clear of the ballast keel, and set down again on her cradle – and the keel itself can be turned on to its side separate from the hull so it can be prepared for refastening to the hull in 2016.

Keel 4 Keel 5

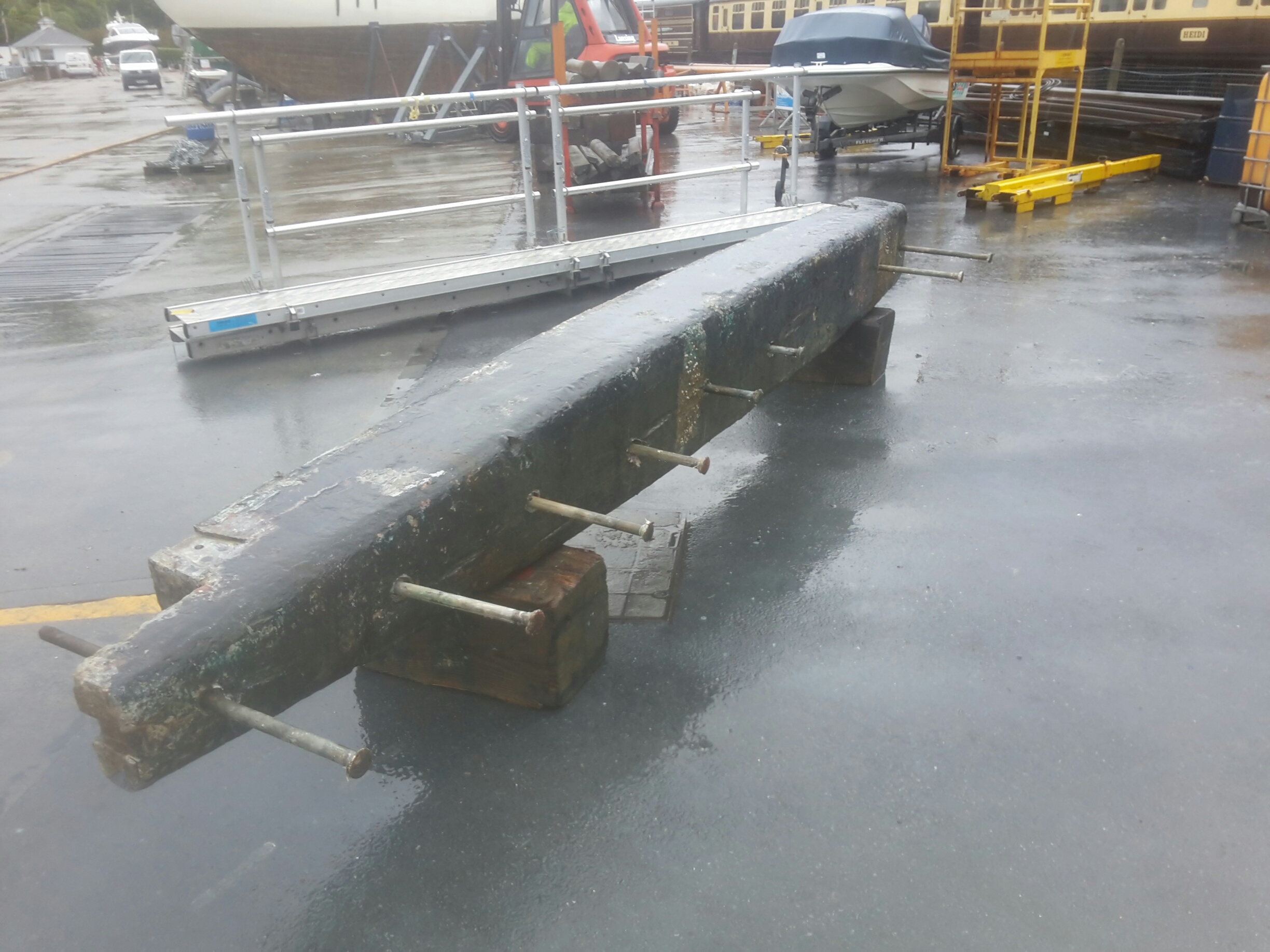

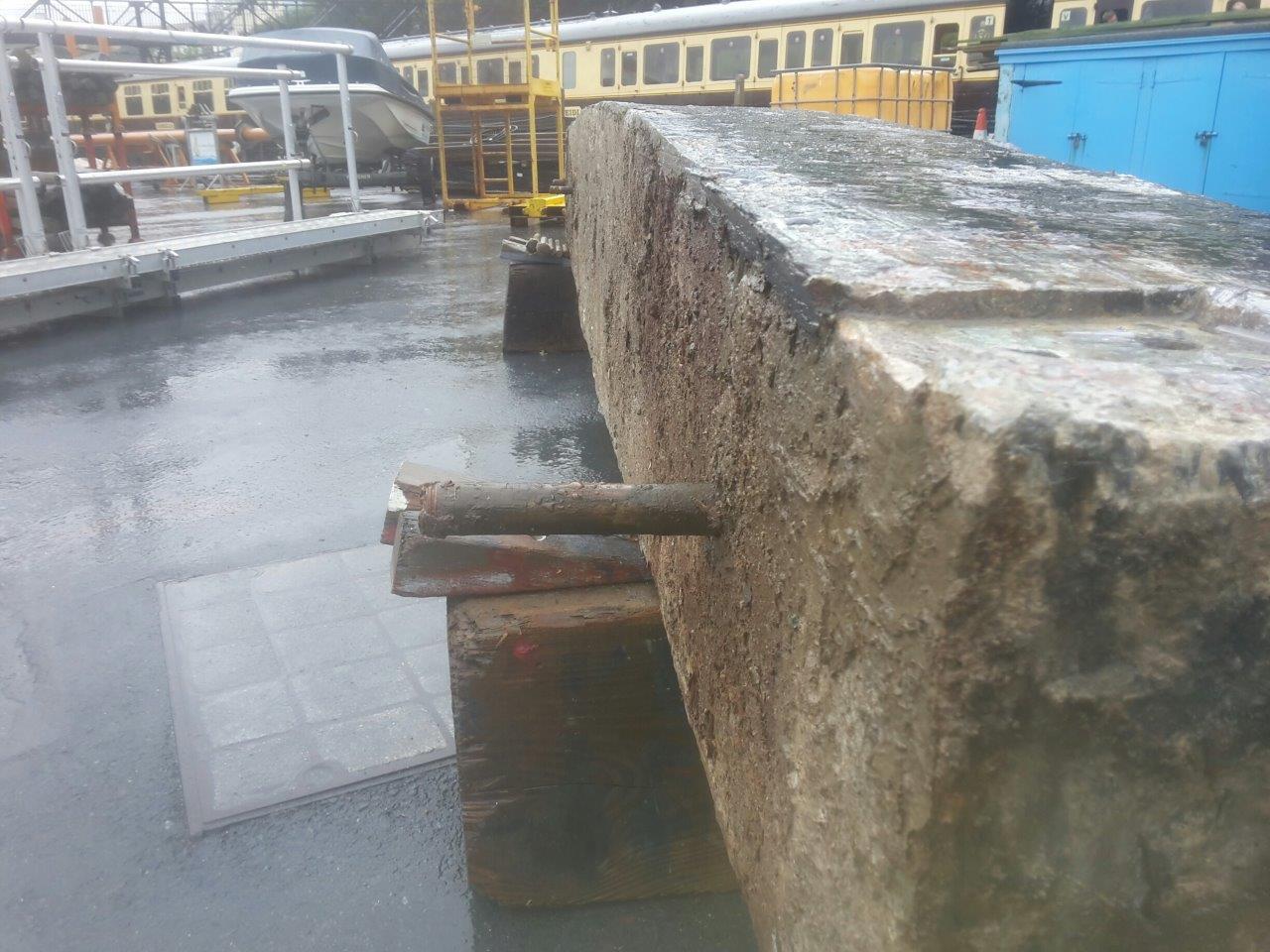

The pictures above show (left) the entire ballast keel with some of the 10 keel bolts still in position, and (right) the top of the keel where it joins the hull – this surface will be faired, some weight being removed (to be calculated so that Saunterer lies on her lines again), and a watertight joint involving leather and tar created.

The actual task is much harder than these notes suggest!”

The Project Team – September 2015

Share:Email this to someoneShare on FacebookTweet about this on TwitterShare on Google+Share on LinkedInPin on PinterestShare on RedditShare on StumbleUpon

Saunterer gives up her secrets – Part 5 – lead weights in the bilge

Date: 10th August, 2015

“ONE of the tasks in this restoration has been to clear out all the debris from Saunterer’s bilge.  This includes concrete, tar, decades of old paint and grime.  Often the wooden surface of the bildge was coated in tar, on which concrete was poured – used for weight ballast and also to bring bilge water to the surface of the bilge so it could be pumped away…

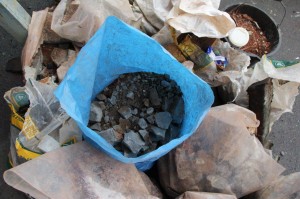

Debris 5

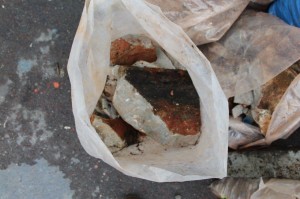

…some of the 750kg of concrete and tar…

Debris 4

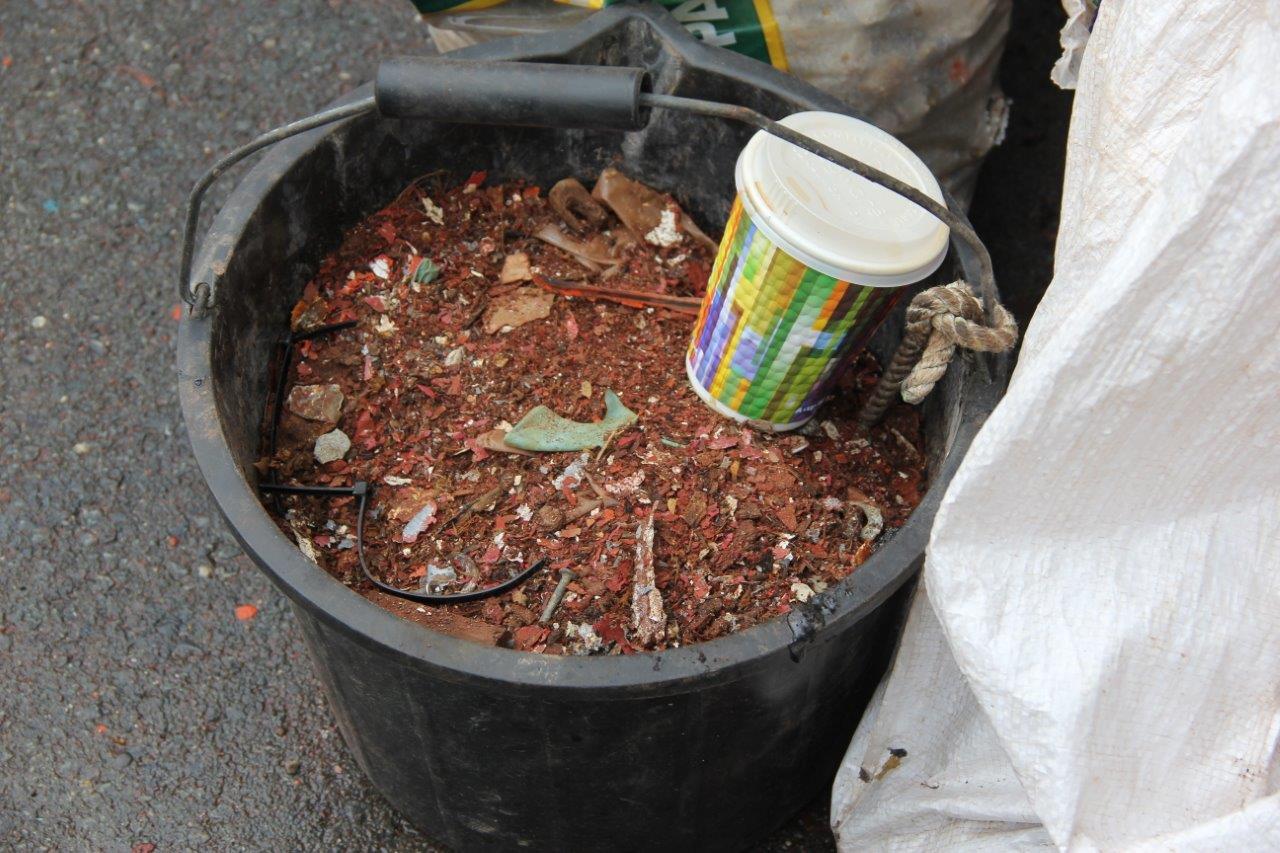

and lead paint residue probably from the early part of the 20th centure from inside the hull…

Debris 2

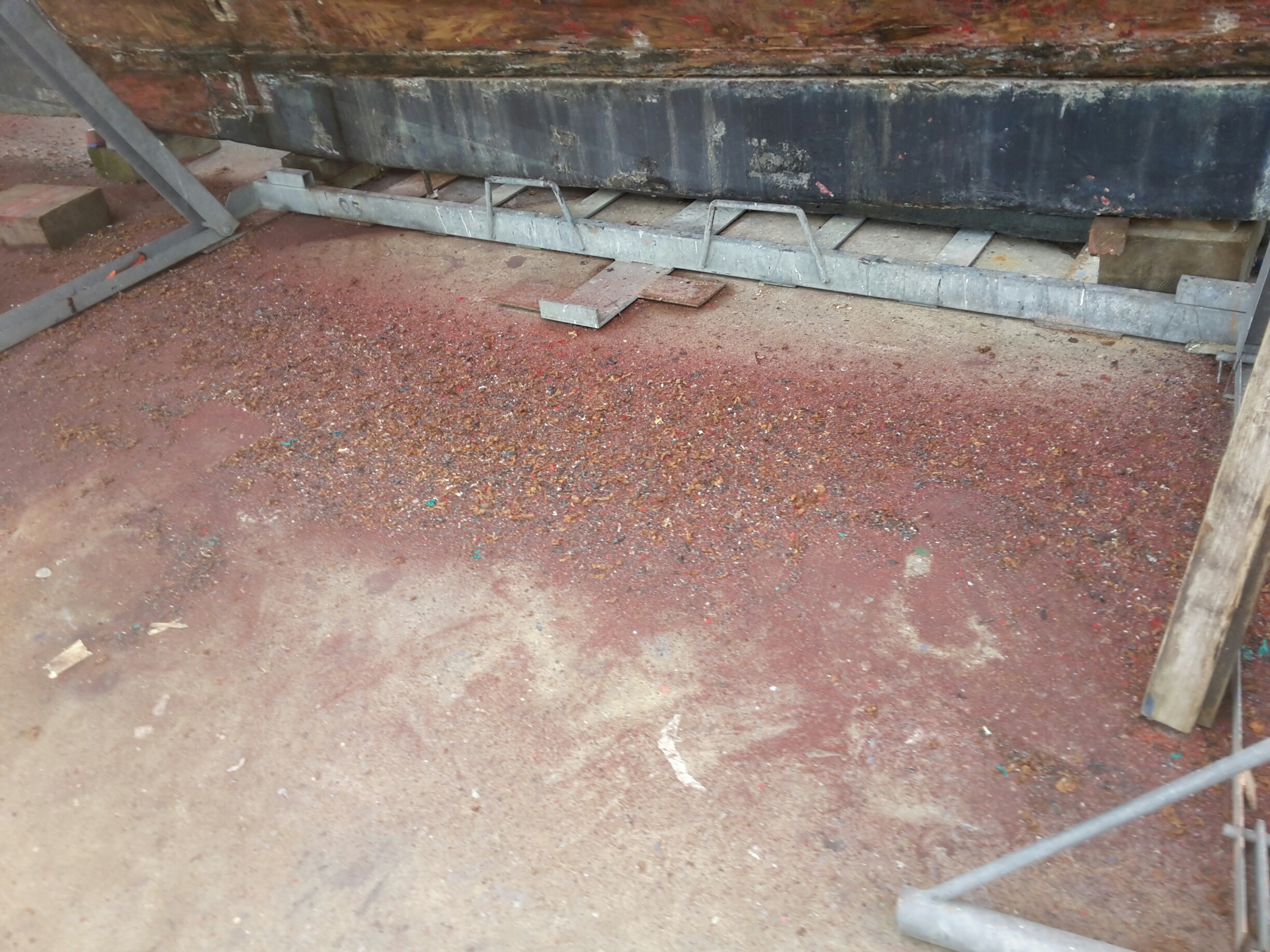

…and outside…

Debris 3

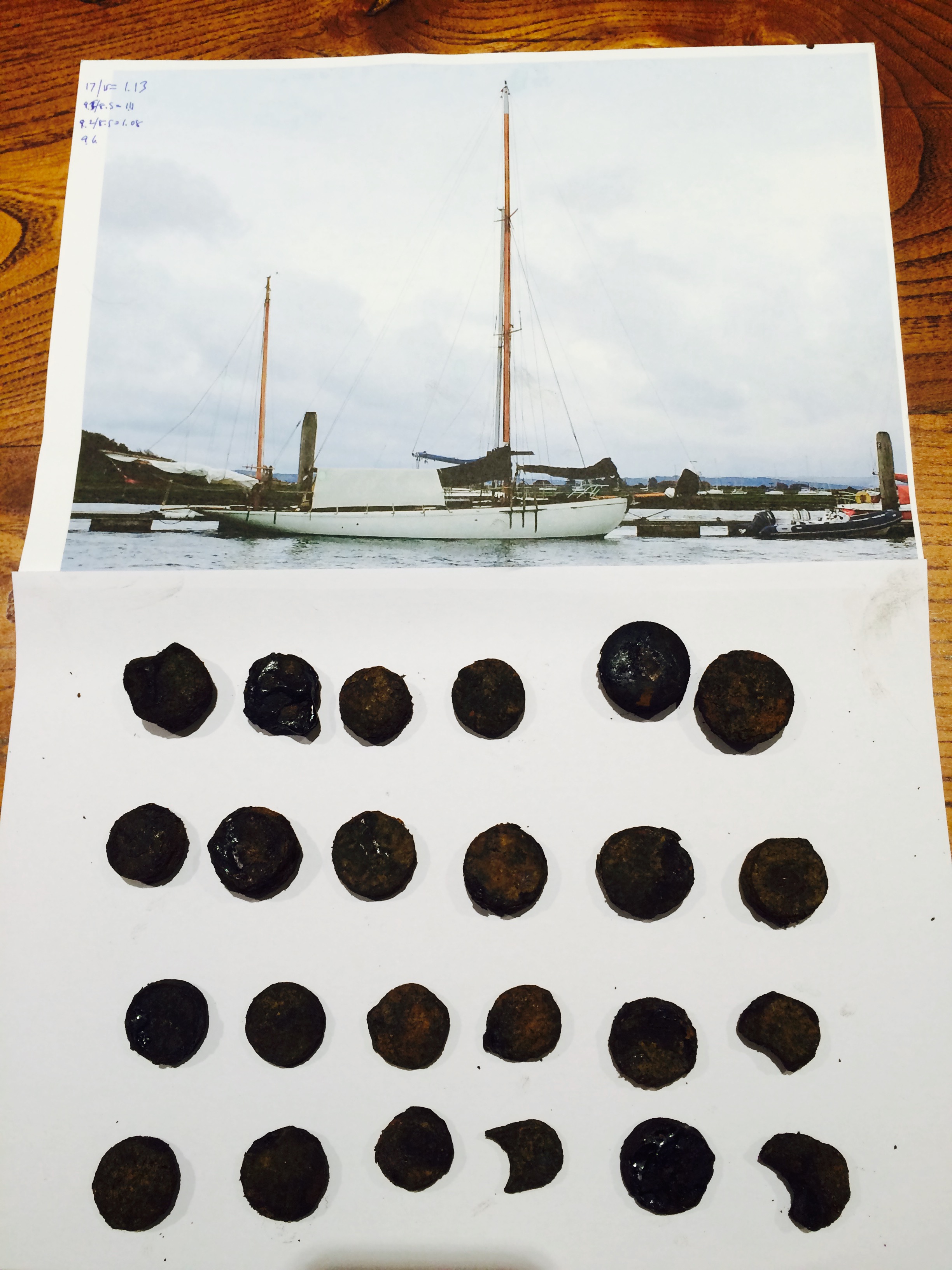

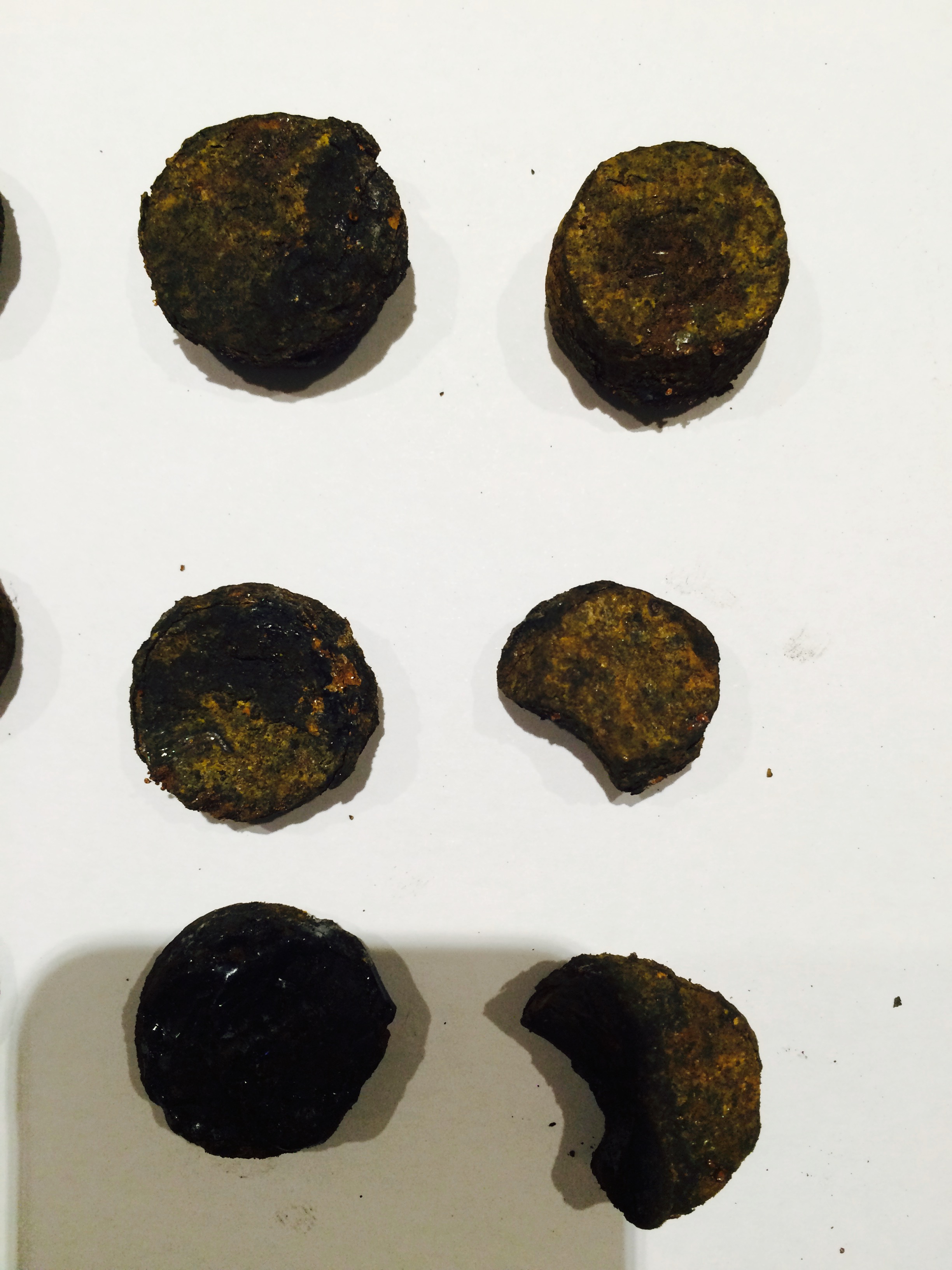

One of the most fascinating secrets has been the discovery of 24 lead weights mixed into the tar, each about 2cm across, which gave additonal ballast in the stern…

Lead Weights 1 - October 2015 Lead weights 2 - October 2015

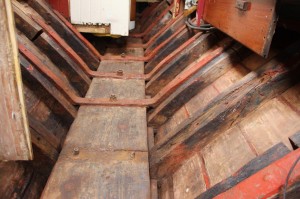

The result of clearing away all the debris has been the creation of a clear interior working surface…”

IMG_6959

The Project Team 30 July 2015

Share:Email this to someoneShare on FacebookTweet about this on TwitterShare on Google+Share on LinkedInPin on PinterestShare on RedditShare on StumbleUpon

Saunterer gives up her secrets – Part 4 – original scribe lines discovered

Date: 20th July, 2015

“As we have stripped back all the paint on the hull we have also discovered three “scribe lines” at different levels (lines scribed by her architects round her hull to show precisely where she should lie on her waterline).  All three scribe lines are lower on her hull than her existing waterline – suggesting that her hull should actually lie further out of the water than it is.

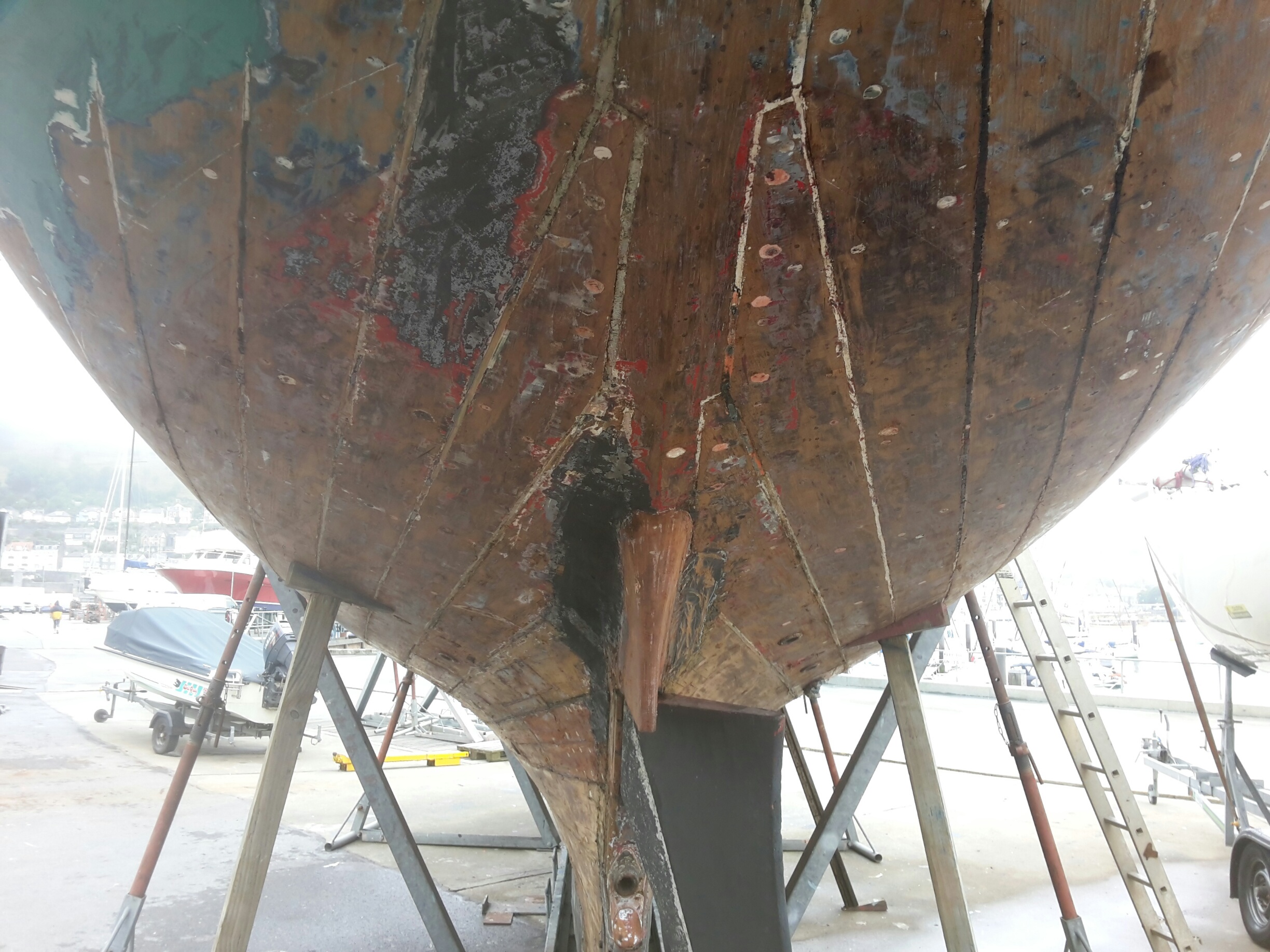

The pictures below show the stripped back hull – from the stern…

Waterline 1

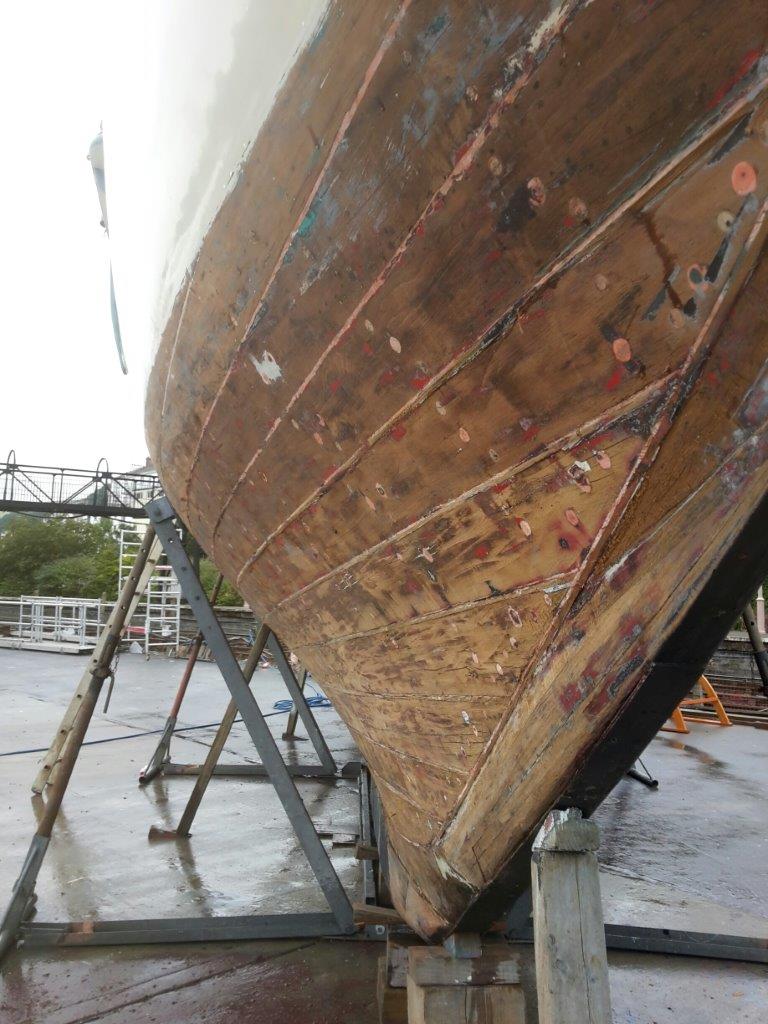

and from the bow…

20150715_152137_resized

…and when we put her back in the water for a brief floation test to see where she lies on her lines, Saunterer has risen out of the water above her original scribe lines by about 6 inches.

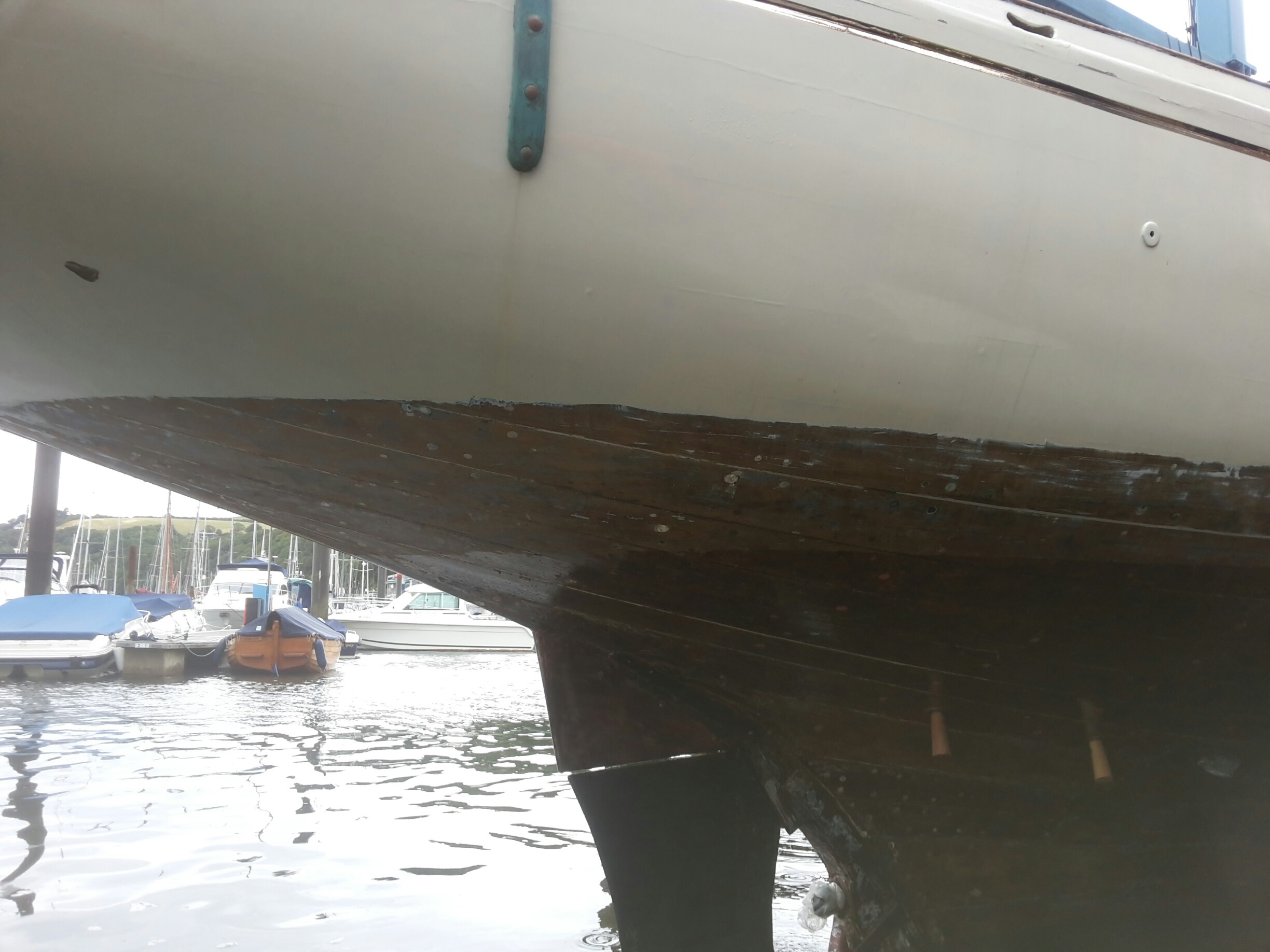

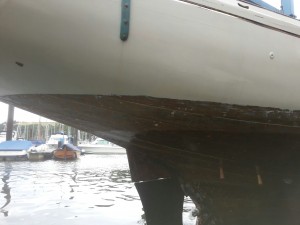

This is logical because (a) she is drier throughout, and we have removed (b) all the concrete and tar from her bilge (weighing about 750kg to date) and (c) her engine and fuel and water stocks (about 500kg).  The pictures below show the floatation test (note the bungs in the hull)…

Waterline 2

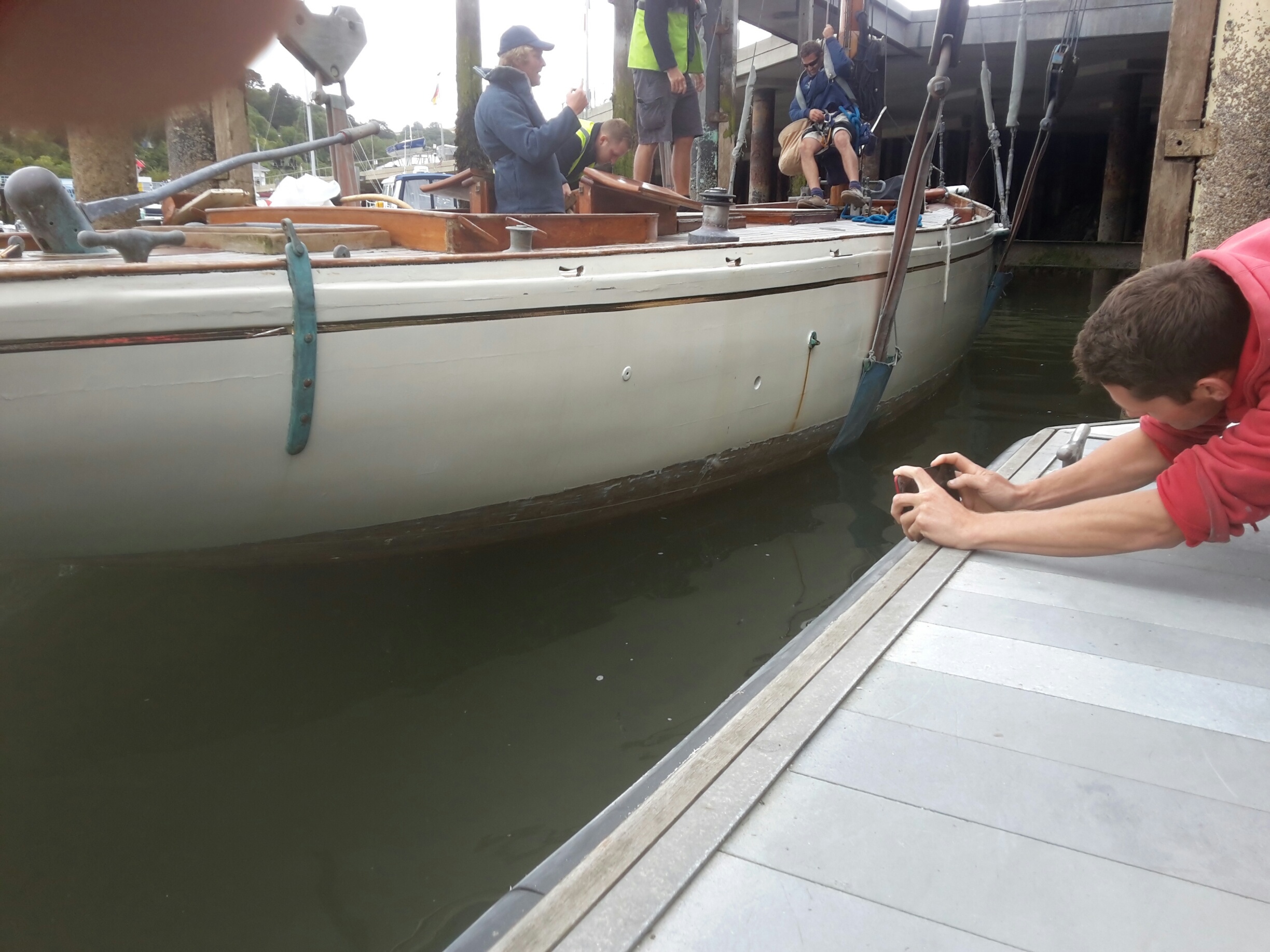

… and the wetted area above her rudder does not reach the white paint of the hull…

Waterline 3

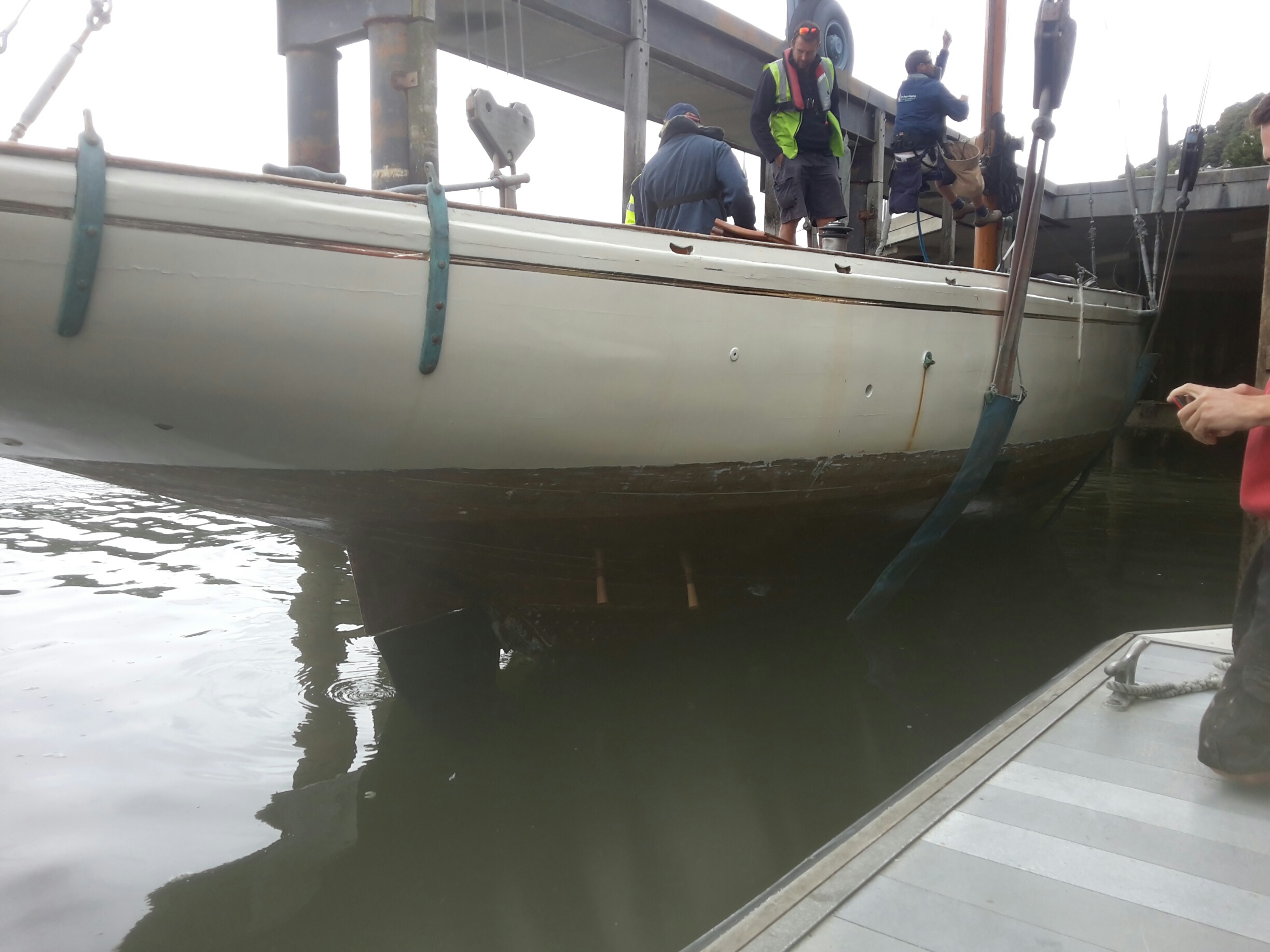

she is lying about 6 inches out of the water…

Waterline 4

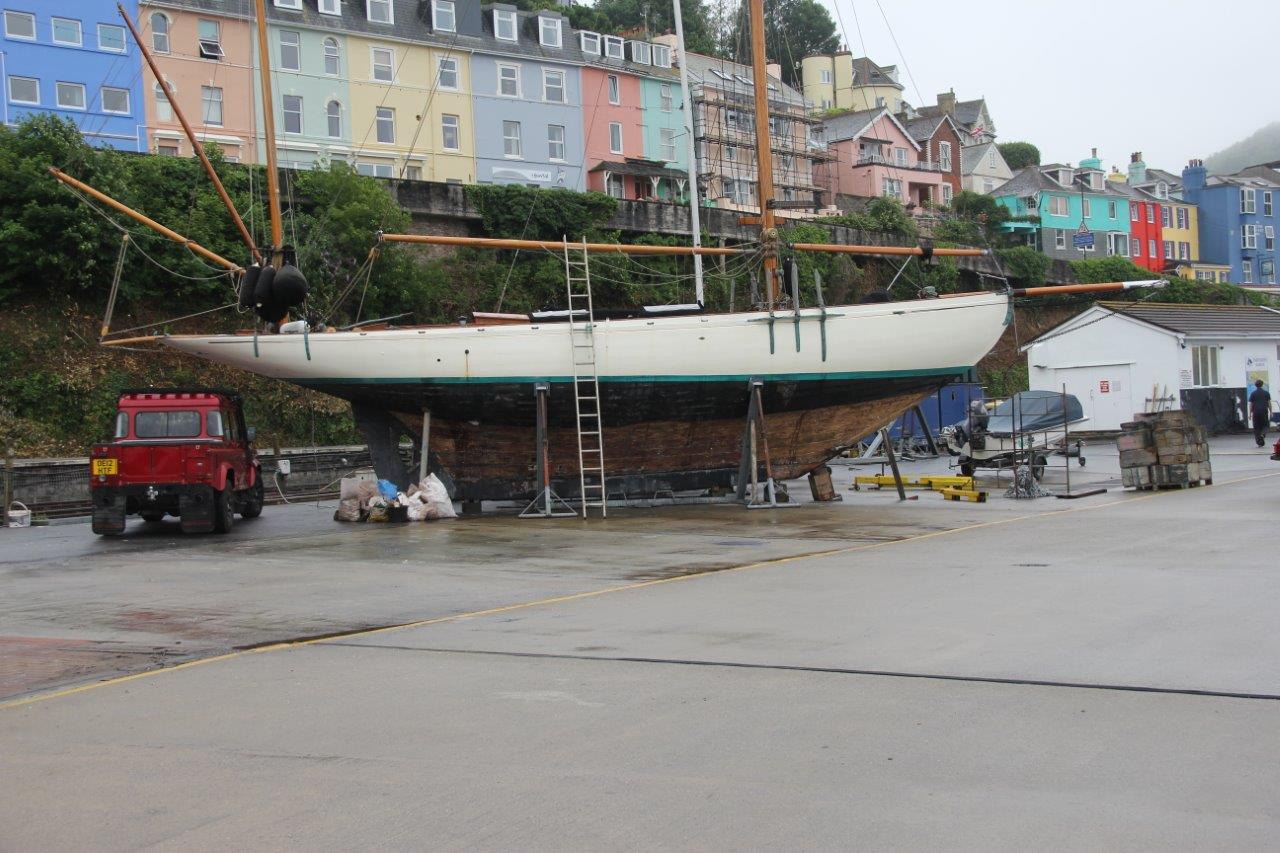

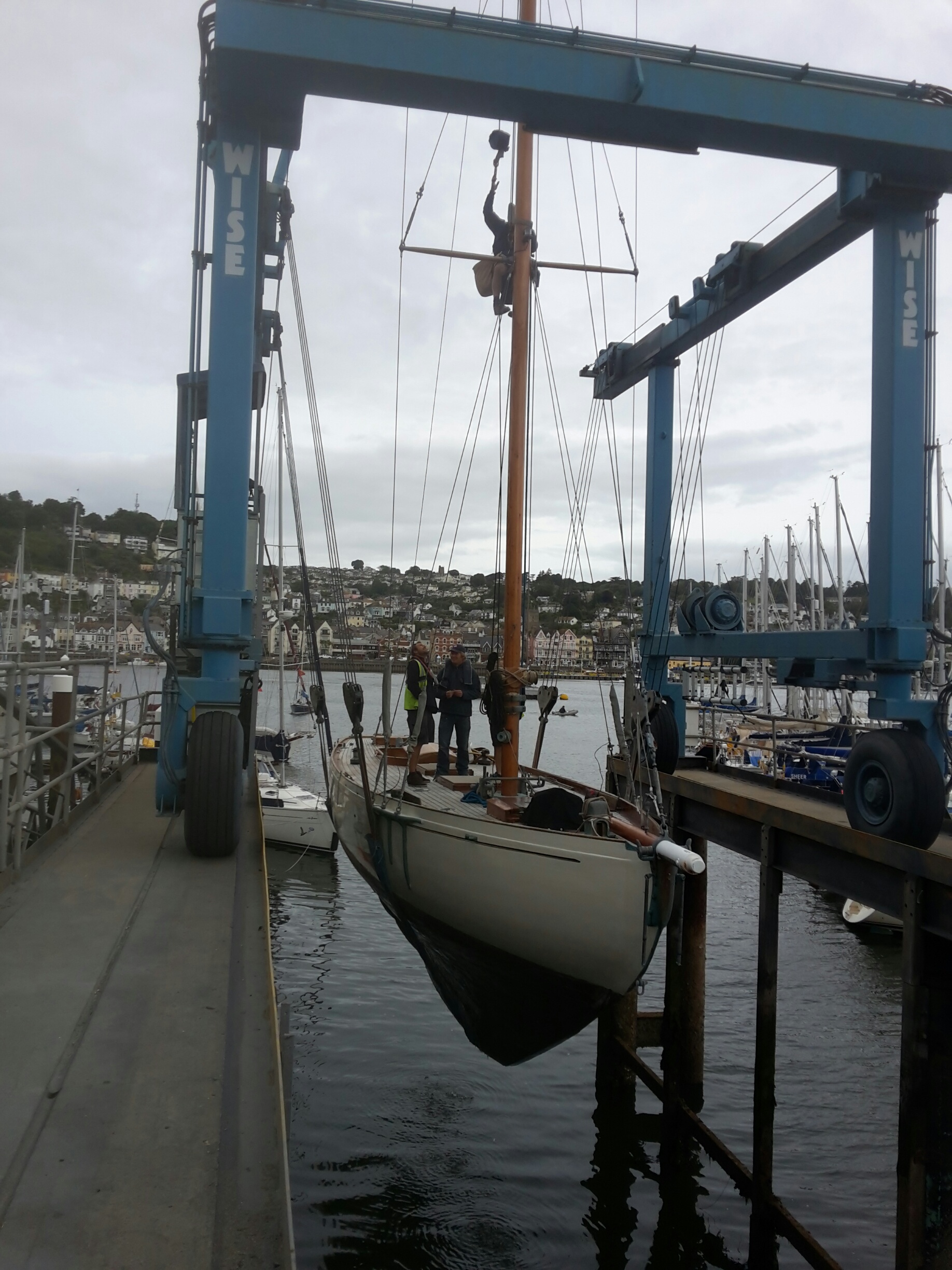

…also shown by the wetted area on her hull as she is lifted out again.

Waterline 5 Waterline 6

Some overall appreciation of her lines is offered by these pictures”

The Project Team – 20 July 2015

Share:Email this to someoneShare on FacebookTweet about this on TwitterShare on Google+Share on LinkedInPin on PinterestShare on RedditShare on StumbleUpon

Saunterer gives up her secrets – Part 3 – copper banding lines

Date: 15th July, 2015

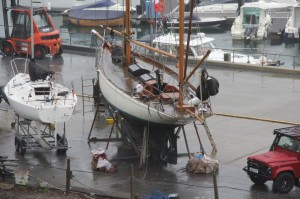

“Unlike almost any other thing, the hull of a wooden boat conceals under its paint many of its secrets – the life of the boat itself.  Here in Darthaven Marina in Dartmouth you could be forgiven for thinking this is another wooden hull going through her ritual and necessary upgrading and restoration.

IMG_6905

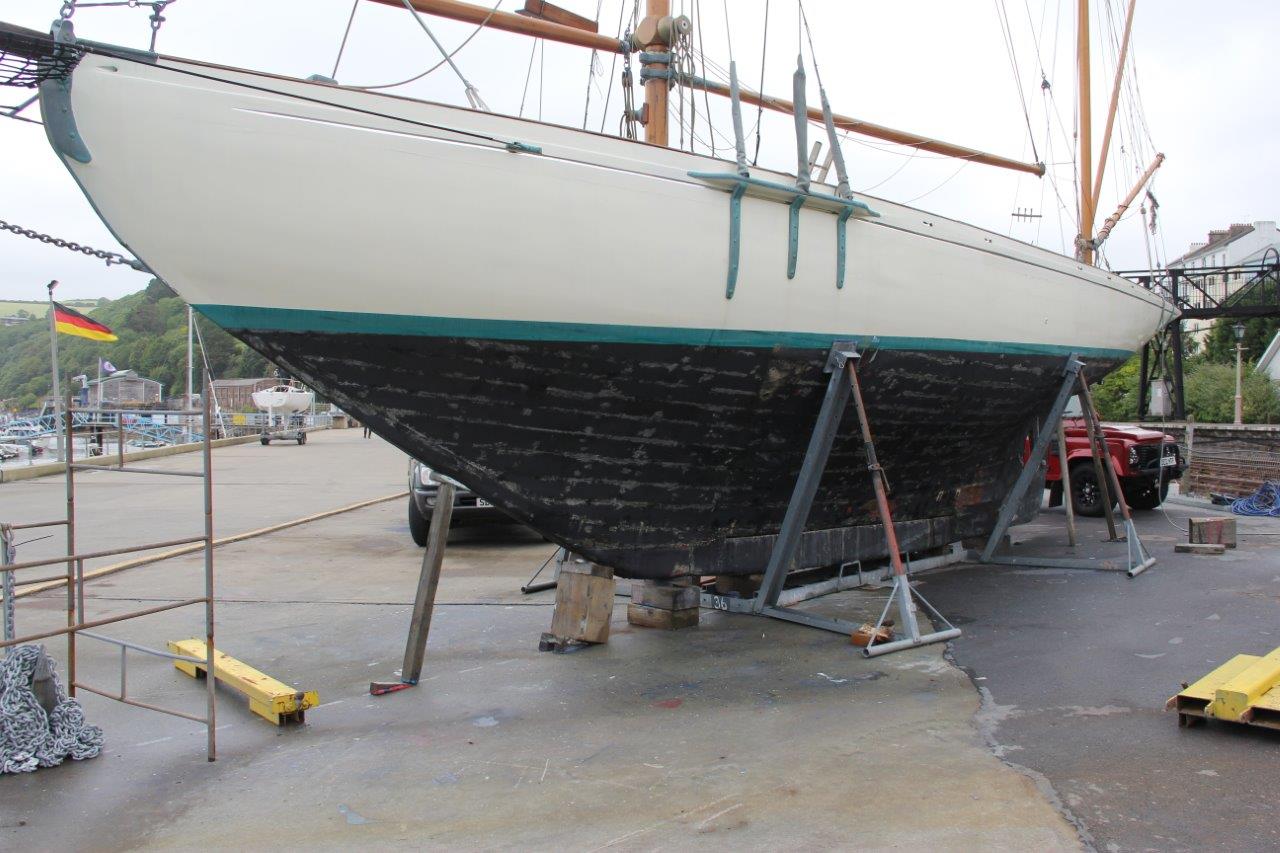

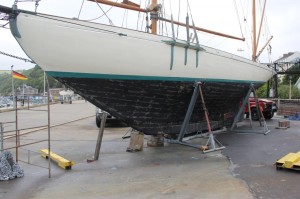

And indeed the port side …

IMG_6925

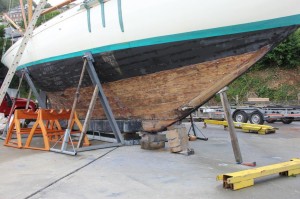

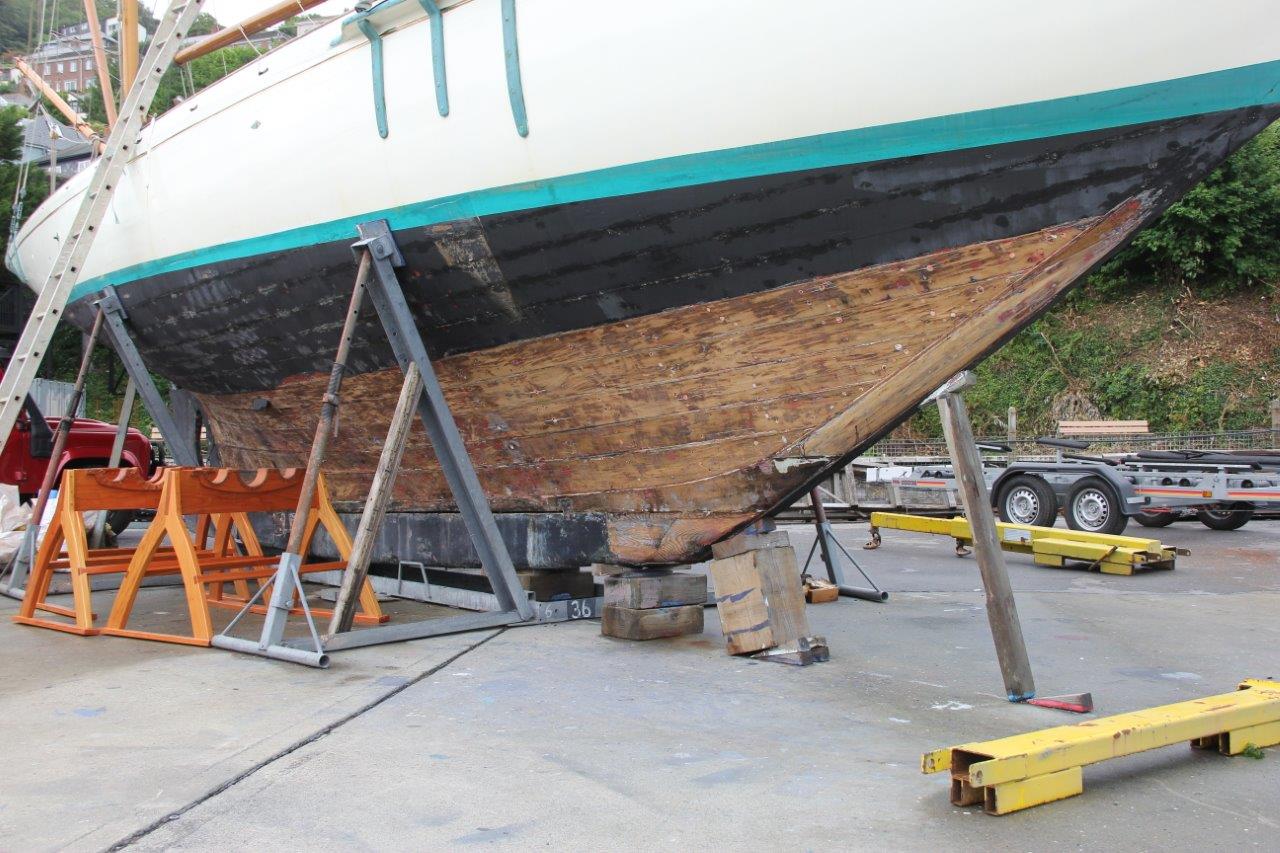

and the starboard side of the hull…

IMG_6937

show much of her life story.  A closer inspection shows some of her history of restoration by previous generations…

20150715_152137_resized

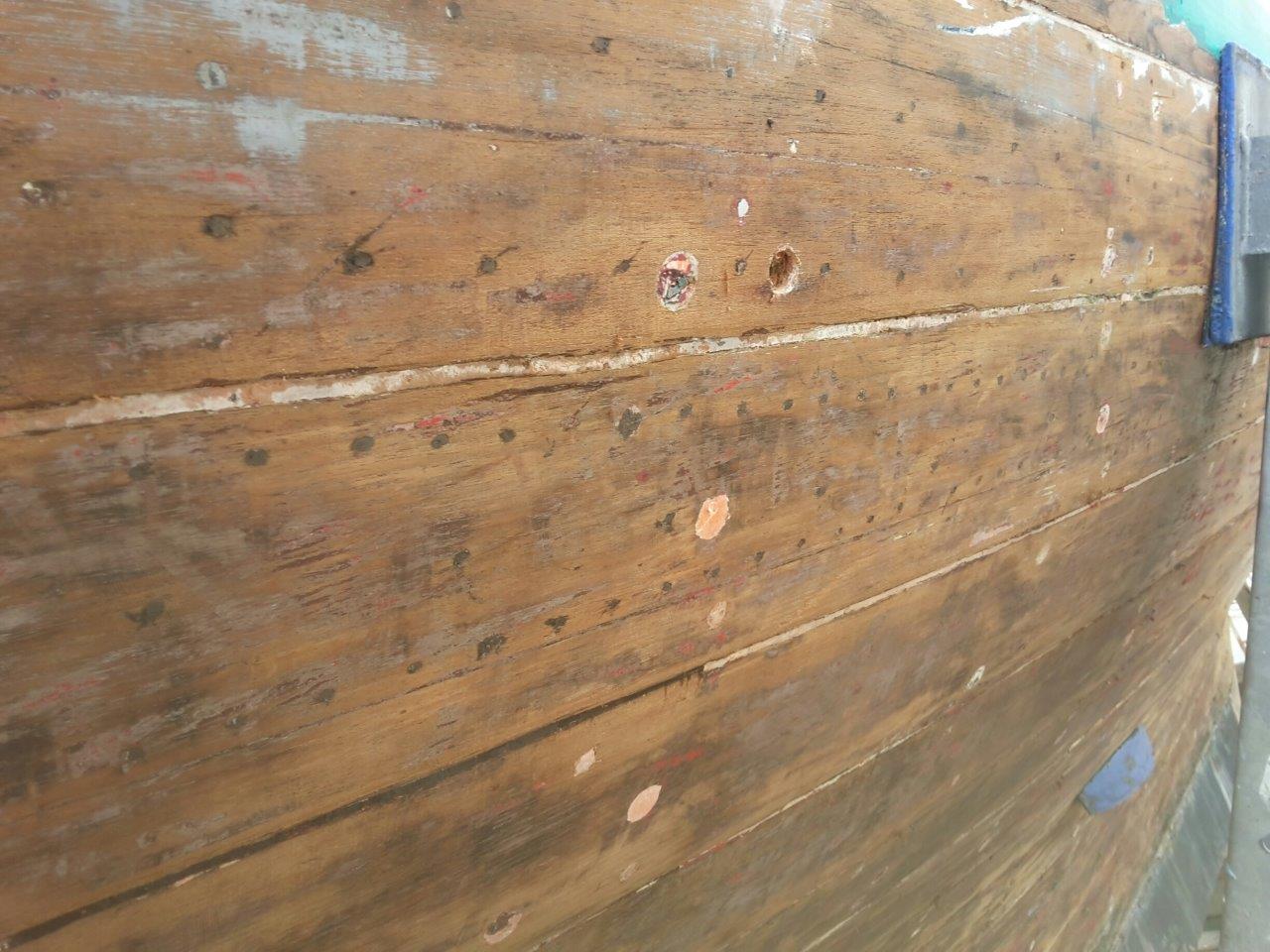

but this picture…

20150715_114958(0)_resized (00000002)

…reveals the nail holes of a strip of copper banding along her waterline – long since removed – which would only have been positioned in preparation for ice – perhaps for her Baltic cruise in the late 1940s, after which her gaff rig was replaced by her existing bermudan rig.”

The Project Team – 15 July 2015

Share:Email this to someoneShare on FacebookTweet about this on TwitterShare on Google+Share on LinkedInPin on PinterestShare on RedditShare on StumbleUpon

Views of the interior – for and aft – July 2015

Date: 15th July, 2015

After much of the initial clearance work has been done – views of Saunterer’s interior – Looking forward…

IMG_6959

and aft…

IMG_6971

 The Projct Team – July 2015
